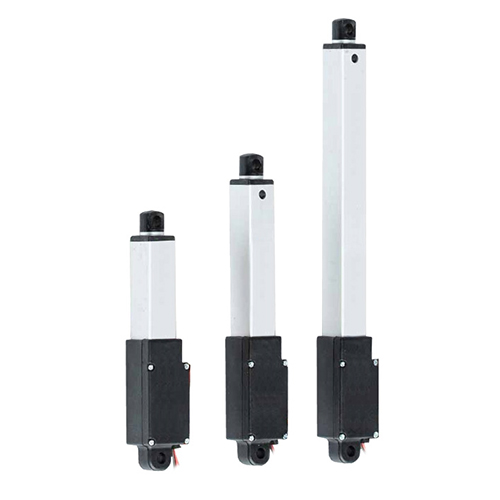

DMKC15 model is suitable for all applications of electric miniature linear actuators. The DMKC15 miniature linear actuator is the difficulty and trouble for the product designer to save the large awkward motor, space, gear and rod linear worktable.
DMKE motor offers the widest range of miniature actuators for any robot project. DMKE has responded to the challenge of designing sports products and has continuously reduced its size and shape. Need a customized miniature linear actuator? We can help. Our team of engineers will work closely with your business to design a custom linear actuator that meets your requirements...
General Features
Voltage of motor: 6V DC, 12V DC,
Maximum load: 20N in pull/push
Maximum speed at full load: 15mm/s ( load 20N)
Stroke: 25mm, 50mm, 75mm, 100mm, 150mm
Minimum dimensions: Stroke + 83 mm; Stroke+98mm
Product weight: 35G
Color: Silver gray or black
IP rating: IP66D
Operational temperature range: -45°C~+55°C
Operational temperature range at full performance: +5°C~+45°C
Higher duty cycle (15%),
High strength metallic zinc alloy housing protects motor and gear
Built-in limit switches (not adjustable)
