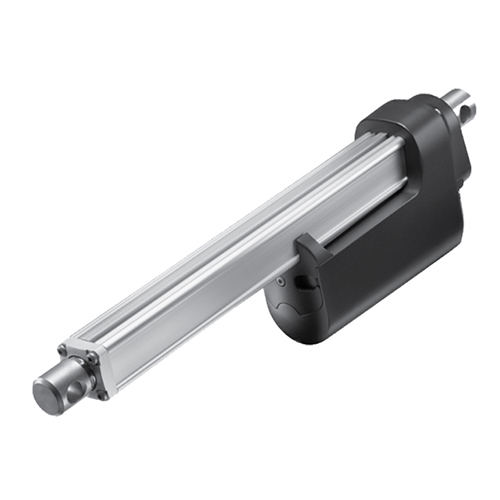

DMK730 series in-line linear actuators are designed for heavy-duty applications developed in harsh environments where there is a need for high lifting capacity and retention.DMKE motor provides well-known quality of DMK730 , which assures you of long-life maintenance-free products...
General Features
Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC
Maximum load: 12,000N in pull/push
The slowest speed: 6.5mm / s (Load 12,000N)
Stroke: 50mm~800mm
Minimum dimensions: Stroke + 200 mm(S＜300mm)
Stroke + 250 mm (S＞300mm)
Color: Silver gray or black
IP rating: IP66
Operational temperature range: -20°C~+45°C
Higher duty cycle (25%)
Other options: Hall sensor, Potentiometer
High strength metallic zinc alloy housing protects motor and gear
Built-in limit switches (not adjustable)
