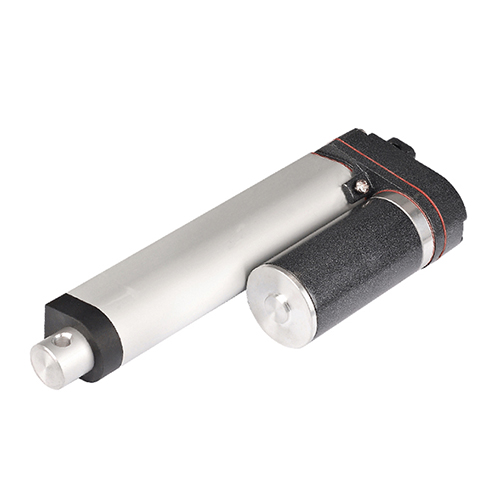

DMK850 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,Application Design of actuators. The products are small-capacity, compact design, protection grade IP54 Alternatively.
General Features
Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC
Maximum load: 750N in push
Maximum speed at full load: 48mm/s ( load 60N)
The slowest speed at full load: 5mm / s (Load 750N)
Stroke: 30~800mm
Minimum dimensions: Stroke + 100 mm
Color: Silver gray or black
IP rating: IP54D
Operational temperature range: -20°C~+45°C
Higher duty cycle (25%)
Other options: NO
Built-in limit switches (not adjustable)
