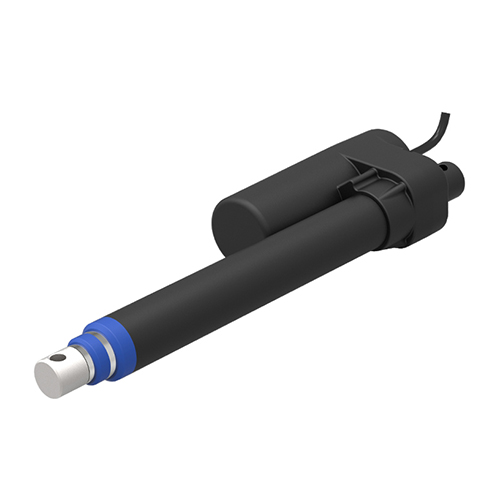

DMK21 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,Application Design of actuators. The products are small-capacity, compact design, protection grade IP69K Alternatively, DMK Series linear actuator is One kind of power-driven device, its installation is not the terrain. Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate..
General Features
Voltage of motor: 12V DC, 24V DC 36V DC,
Maximum load: 2,500N in pull/push
Maximum speed at full load: 75mm/s ( load 200N)
The slowest speed at full load: 18mm / s (Load 2,500N)
Stroke: 50~600mm
Minimum dimensions: Stroke / 2 + 160 mm (S＜700mm)
Stroke / 2 + 180 mm (S＞800mm)
Color: Silver gray or black
IP rating: IP69
Operational temperature range: -40°C~+55°C
Operational temperature range at full performance: -40°C~+55°C
Higher duty cycle (25%),
Other options: Hall sensor
High strength metallic zinc alloy housing protects motor and gear
Built-in limit switches (not adjustable)
