Single Phase AC Motor Your Position: Home » Product Center

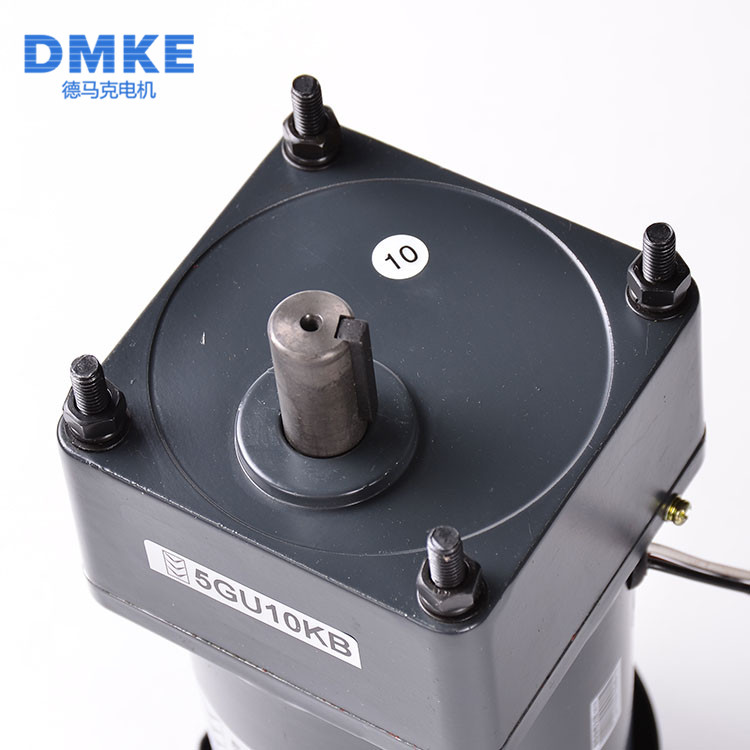

5IK120GU-CF/5GU50K

Model:5IK120GU-CF5GU50K
  • Hotline: 86-18802037981   86-13570144285
    • Email:  faye@gzdmkemotor.cn
    •            shirley@gzdmkemotor.cn
Consult
Model
Lead Wire Type
Output Power Voltage Frequency Current Starting Torque Rated Torque Rated Speed Capacitor
Pinion Shaft Round Shaft W V HZ A mN.m mN.m r/min µF
5IK120GU-AFJ 5IK120A-AFJ 120 1ph100 50 2.1 600 930 1250 30
60 2.5 600 750 1550 30
5IK120GU-CFE 5IK120A-CFE 1ph220 50 1 650 930 1250 7
1ph230 50 0.95 650 930 1250 7
5IK120GU-S 5IK120A-SF 3ph220 50 0.7 1850 930 1250  -
60 0.6 1600 750 1550  -



Note: Above are only some typical models. For more information or a customized motor, Pls contact us.



Dimensions (Unit: mm )

Mounting screws are included with gearhead

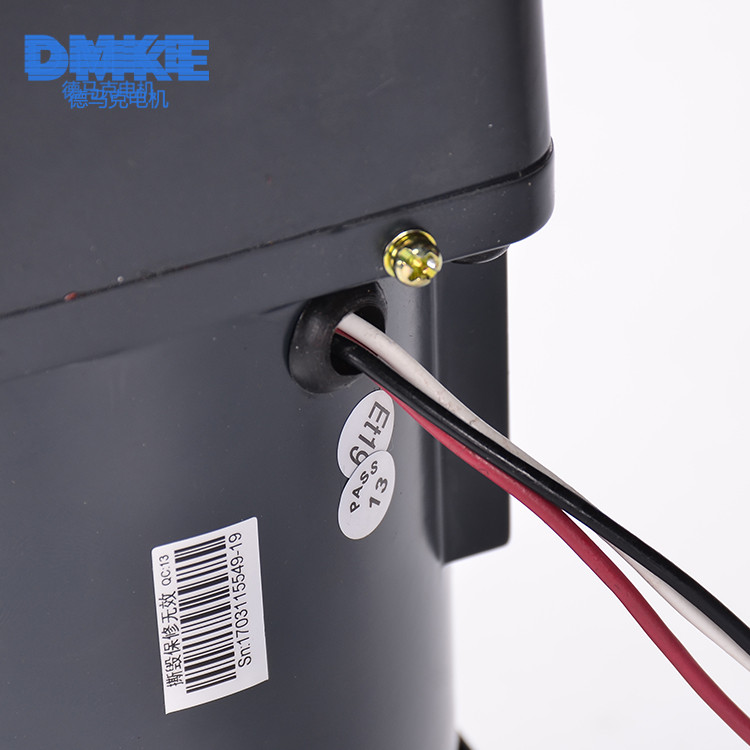

Lead Wire Type

Motor weight: 3.4kg    Gearhead weight: 1.5kg

Gear ratio:3-200, L1=65.5





ALLOWABLE TORQUE BEING WITH GEARHEAD



       indicates of the motor while the others rotate in the opposite direction.

The speed is calculated by dividing the motors synchronous speed(50Hz:1500r/min, 60Hz: 1800 r/min) by the gear ratio.

The actual speed is 2%-20% less than the displayed value, depending on the size of the load.

Allowance Torque Unit: Upside(N.m)/Below side(kgf.cm)



5IK120GU



Flange Mounting Reducer

Can be mounted on GU type gear shaft

Weight:1.5kg

Key·Keyway(Accessory of Gearhead)

Shaft Section of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Decimal Gearhead

Can be connected to GU pinion shaft type

Weight:0.65KG



Formal Dimension of Capacitor

Model Capacitor Model L W H
Pinion Shaft Round Shaft
5IK120GU-AF 5IK120A-AF ZD300CFAUL 58 26 38
5IK120GU-EF 5IK120A-EF ZD250CFAUL 47 27 37
5IK120GU-CF 5IK120A-CF ZD70BFAUL 47 24 37



Wiring Diagram
