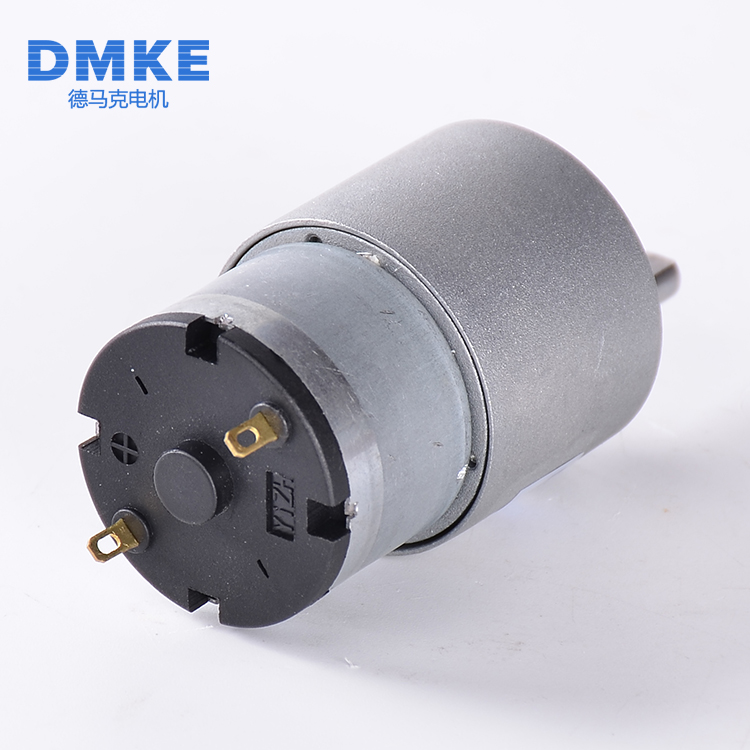

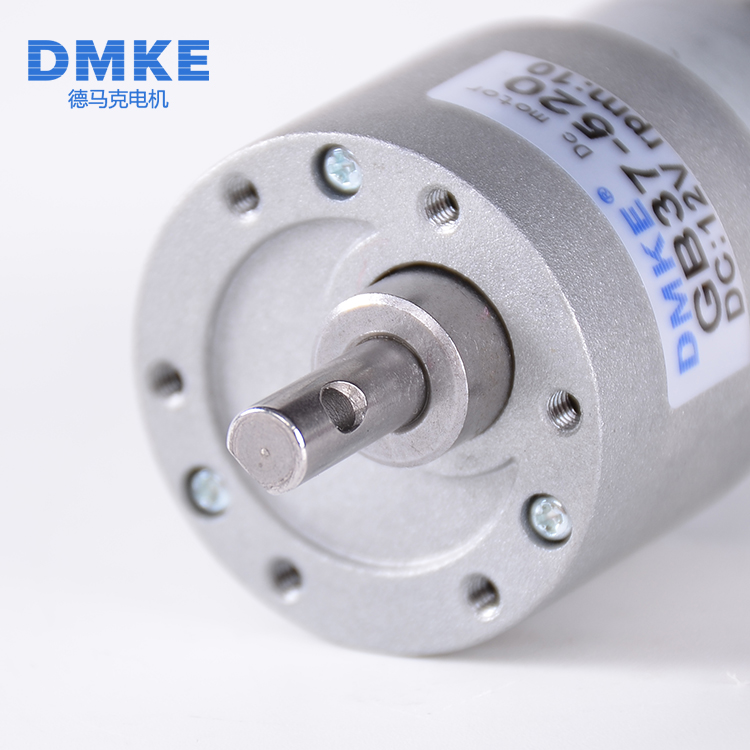

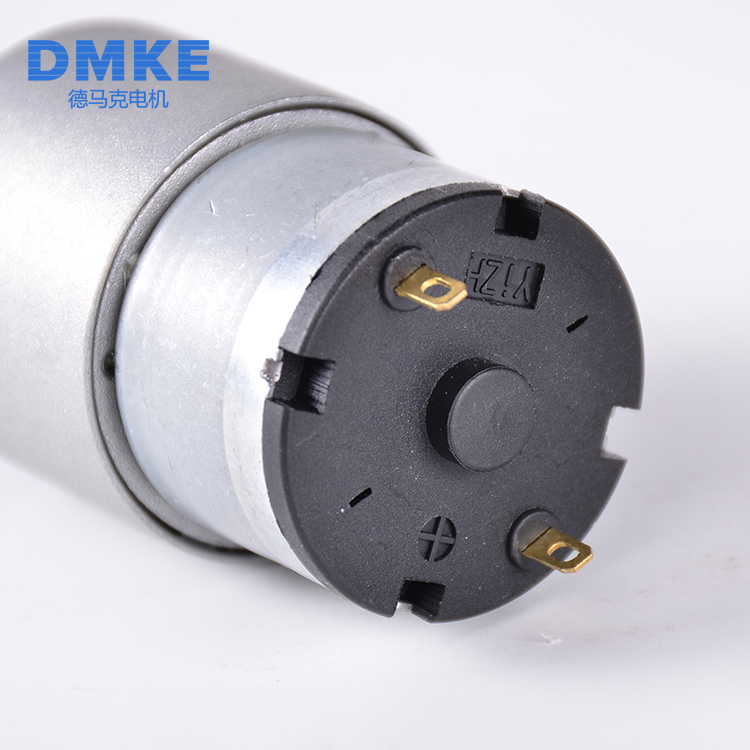

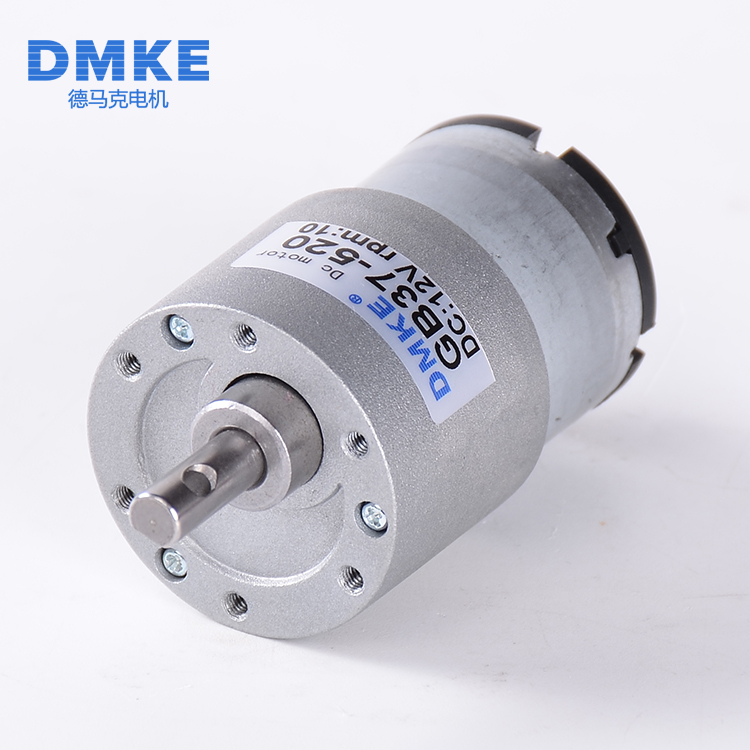

| Type | Micro dc gear motor |
| Material | Stainless steel |
| Advantage | Small dimension,low noise, low price, long life, With High toruqe,Ce, CCC, Rohs |
| Application |
Scissors machine, crane machine, electric-drive toy, projector, intelligent robot, automatic valve, strongbox, dryer drying machine, automatic door-lock, intelligent cleaner,ATM bank automatic system, intelligent lock, lampblack machine, liquid crystal display screen, electric curtain, tie-yarn machine, massager, coffee machine, entertainment machine, automation Majang machine, automation machine, automation Majang machine, etc. |
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| v | r/min | A | r/min | A | mN.m | kg.cm | w | mN.m | kg.cm | A | |
| DK-37B520-50 | 12 | 110 | 0.04 | 94 | 0.18 | 147 | 1.5 | 1.45 | 1009 | 10.3 | 1.6 |
| DK-37B520-150 | 12 | 21 | 0.03 | 17 | 0.11 | 353 | 3.6 | 0.37 | 1853 | 18.9 | 0.4 |
| DK-37B528-90 | 12 | 77 | 0.07 | 62 | 0.32 | 314 | 3.2 | 2.04 | 1607 | 16.4 | 1.7 |
| DK-37B528-210 | 24 | 31.5 | 0.04 | 25 | 0.2 | 617 | 6.3 | 1.61 | 2990 | 30.5 | 1.0 |
Note: Above are only some typical models. For more information or a customized motor, Pls contact us.
| Gear length | Reduction Ratio | |||
| 17.8 | 10 | |||
| 21.5 | 20 | 30 | 40 | |
| 24 | 50 | 60 | 70 | 90 |
| 26.5 | 120 | 150 | 210 | 270 |
| 29 | 450 | 540 | 630 | 810 |
