| Model | D2BLD100-12A-20S | D2BLD100-24A-20S | D2BLD100-36A-20S | D2BLD100-48A-20S | D2BLD100-310A-20S |
| Power W | 100 | 100 | 100 | 100 | 100 |
| Voltage V | 12 | 24 | 36 | 48 | 310 |
| No load speed rpm | 2800 | 2800 | 2800 | 2800 | 2800 |
| Rated speed rpm | 2000 | 2000 | 2000 | 2000 | 2000 |
| Rated current A | 10.42 | 5.21 | 3.47 | 2.6 | 0.4 |
| Rated torque N.m | 0.48 | 0.48 | 0.48 | 0.48 | 0.48 |
| Peak torque N.m | 1.43 | 1.43 | 1.43 | 1.43 | 1.43 |
| No-load current A | <1.2A | <0.8A | <0.6A | <0.4A | <0.3A |
|
Recommended drive model |
BLD-750 | BLD-300B | BLD-120A | BLD-300B | BLDH-350B |
Note: Above are only some typical models. For more information or a customized motor, Pls contact us.
Customizable accessories:motor length, shaft, voltage,power,rated speed and so on.
Diagram
ALLOWABLE TORQUE BEING WITH GEARHEAD
| Gearhead type | Gearhead model | Gearhead rate |
| worm gear box | RV030-□ | 7.5、10、15、20、25、30、40、50、60、80 |
□ in Gearhead type is a value of Gearhead rate
ALLOWABLE TORQUE BEING WITH GEARHEAD
| Reducer type | Worm gear reducer | Model | RV030 | |||||||
| Gear ratio | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
| Rated output speed rpm | 267 | 200 | 133 | 100 | 80 | 67 | 50 | 40 | 33 | 25 |
| Rated output torque Nm | 2.9 | 3.8 | 5.7 | 7.4 | 9.1 | 10.6 | 13.4 | 12 | 17 | 12 |
Dimensions (Unit: mm )
Mounting screws are included with gearhead
| Power wire | Hall wire | ||||||
| Red | Yellow | Black | Red | Black | Hu | HV | HW |
| U | V | W | 5V | GND | Blue | Green | White |
ALLOWABLE TORQUE BEING WITH GEARHEAD
| Gearhead type | Gearhead model | Gearhead rate |
| worm gearbox | RV025-□ | 5、7.5、10、15、20、25、30、40、50、60 |
□ in Gearhead type is a value of Gearhead rate
ALLOWABLE TORQUE BEING WITH GEARHEAD
| Reducer type | Worm gear reducer | Model | RV030 | ||||||
| Gear ratio | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 |
| Rated output speed rpm | 267 | 200 | 133 | 100 | 80 | 67 | 50 | 40 | 33 |
| Rated output torque Nm | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 10 | 10 | 10 |

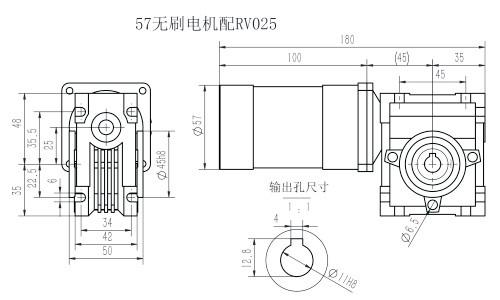

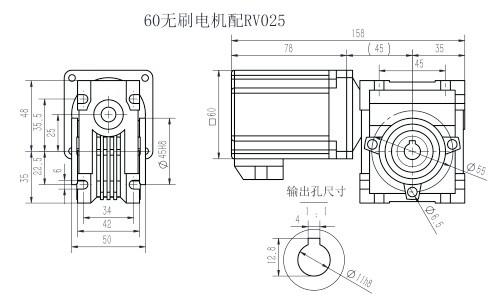

Dimensions (Unit: mm )
Mounting screws are included with gearhead
