Feature
A. Low power consumption, smaller battery and longer battery life
B. No need cleaning and maintenance
C. Easy for speed adjustment and reversible direction
D. Removable location
E. Smaller size, compact and less weight design
F. Longer life, higher quality with reliability
G. Higher efficiency, low heat loss and high C/P
H. Higher speed, high performance
I. Lower emissions, lower EMI/RFI
J. Smart control, cleaner with smart function
| Model | D2BLD30-12GN-30S | D2BLD30-12GN-30S | D2BLD30-12GN-30S | D2BLD30-12GN-30S |
| Power W | 30 | 30 | 30 | 30 |
| Voltage V | 12 | 24 | 36 | 310 |
| No load speed rpm | 3300 | 3300 | 3300 | 3300 |
| Rated speed rpm | 3000 | 3000 | 3000 | 3000 |
| Rated current A | 3.13 | 1.56 | 1.04 | 0.12 |
| Rated torque N.m | 0.1 | 0.1 | 0.1 | 0.1 |
| Peak torque N.m | 0.29 | 0.29 | 0.29 | 0.29 |
| No-load current A | <0.6A | <0.4A | <0.3A | <0.2A |
| Recommended drive model | BLD-70 | BLD-70 | BLD-300B | BLD-350B |

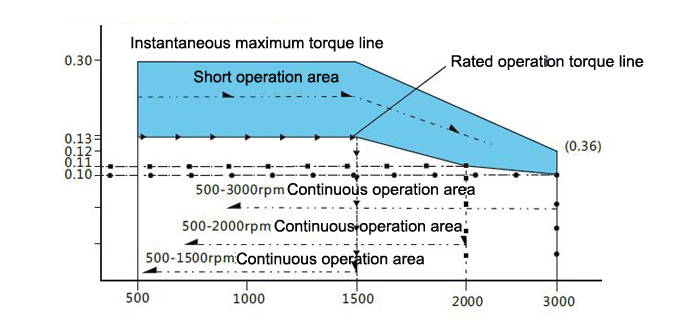

ALLOWABLE TORQUE BEING WITH GEARHEAD
Note: Above are only some typical models. For more information or a customized motor, Pls contact us.
Customizable accessories: motor length, shaft, voltage, power, rated speed and so on.

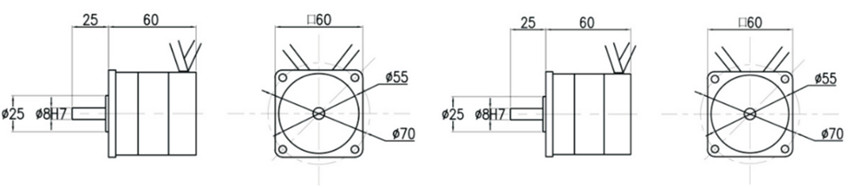

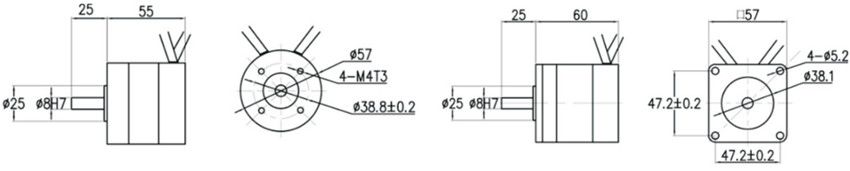

Dimensions (Unit: mm )
Mounting screws are included with gearhead
Diagram
